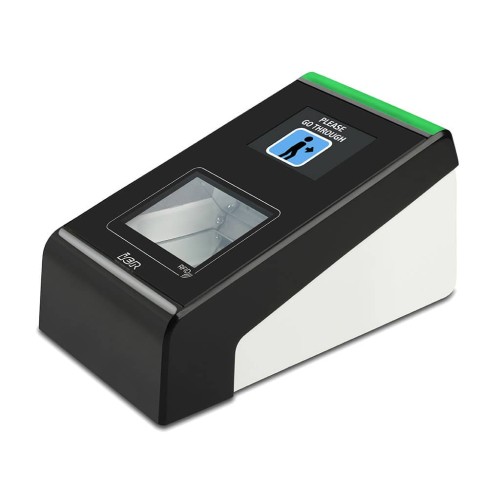

The Easier i602 is a flatbed barcode, RFID, and NFC boarding pass reader designed for fast passenger authentication in airport environments. Built for airline and airport passenger processing workflows, the i602 reads boarding passes from paper, mobile phones, PDAs, and contactless media, making it a flexible solution for check-in, security, boarding, and self-service applications.

The i602 supports omnidirectional reading of all major 1D and 2D barcode symbologies, including PDF417, DataMatrix, Aztec, and QR Code. This is especially important for airport operations because boarding passes may be presented in multiple formats, including printed ATB documents, Print at Home e-tickets, and mobile boarding passes on passenger smartphones. With read capability in less than 0.5 seconds, the i602 helps reduce passenger processing time and supports smoother throughput at airport checkpoints and boarding gates.

Beyond barcode reading, the i602 includes HF RFID and NFC capabilities. It supports NFCIP-1 and ISO 18092 peer-to-peer communication, data exchange speeds up to 424 kbps, and ISO 14443 A/B RFID technology. It supports Mifare, Mifare DESFire through software, Mifare Plus, and Felica technologies and can read, write, and search 13.56 MHz HF RFID tags. This gives airports and airlines a flexible platform for contactless cards, secure credentials, loyalty applications, identity workflows, and future passenger processing initiatives.

The i602 also functions as more than a reader. Its embedded Linux platform enables value-added applications, including boarding pass authentication, public and private key encryption, biometrics integration, cryptographic functions, device control, reconciliation processes, and receipt printer connectivity. The large 3.5-inch TFT-LCD color display provides passenger- and agent-visible information, while green and red LED indicators and an extra-loud buzzer give immediate operational feedback during validation.

For airport technology teams, the i602 supports CUPPS and CUSS compliance with existing platforms and includes IP, USB host and device, and serial interfaces. Configuration, diagnostics, and monitoring can be performed through a web browser, making it easier to support distributed airport deployments. Optional accessories such as a lightweight direct thermal receipt printer and an external 8.4-inch second screen allow the system to be expanded for specialized use cases.

The Easier i602 is ideal for airports, airlines, and system integrators that need a compact, high-performance boarding pass reader capable of handling physical documents, mobile boarding passes, RFID media, NFC interactions, and external passenger processing devices.

Need help selecting airport check-in, boarding pass, baggage tag, RFID, or passenger processing equipment? Contact OmniData Services at 281-469-4365 or email This email address is being protected from spambots. You need JavaScript enabled to view it. for pricing, availability, compatibility guidance, and deployment support.

• Flatbed barcode and RFID/NFC boarding pass reader
• Reads paper, PDA, and mobile phone boarding passes
• Omnidirectional 1D and 2D barcode reading
• Supports PDF417, DataMatrix, Aztec, QR Code, and other major barcode formats
• Read capability in less than 0.5 seconds
• HF RFID contactless card reading
• NFC peer-to-peer communication mode
• 3.5-inch TFT-LCD color display with 360-degree viewing angle
• Wide green and red LED indicator and extra-loud buzzer
• Embedded Linux platform for authentication and value-added applications
• CUPPS and CUSS compliant with existing platforms
• IP, USB host, USB device, and serial interfaces
• Browser-based configuration, diagnostics, and monitoring
• Supports external receipt printer, biometric devices, and optional second screen

Key Benefits

• Reads printed boarding passes, mobile boarding passes, RFID credentials, and NFC media.
• Fast read capability helps reduce passenger queues and improve throughput.
• Large display, LED indicators, and buzzer provide clear agent and passenger feedback.
• Embedded Linux platform supports value-added airport applications.
• CUPPS and CUSS compatibility supports common airport platform integration.
• External device support enables receipt printers, biometrics, and second-screen workflows.

Supported protocol

ITPS / AEA 2012 compliant

Supported media

All barcode symbologies and HF RF chip can be read from paper, PDA, and cell phone

Barcode reading

Omnidirectional reading

Barcode symbologies

All 1D and 2D barcodes including PDF417, DataMatrix, Aztec, and QR Code

Barcode performance

Less than 0.5 second read capability

Scanning window

80 x 60 mm

Graphical user interface

3.5-inch TFT-LCD display with 360-degree viewing angle for passenger and agent

Display resolution

320 x 240 pixels; 262,000 colors

Visible and audible signals

Wide green and red LED indicator; extra-loud audio buzzer

Connectivity

2 x RS232, 1 x USB device, Ethernet, 2 x USB host for maintenance and external peripherals

Near Field Communication

NFCIP-1 and ISO 18092 compliant; peer-to-peer communication; data exchange speed up to 424 kbps

RFID

ISO 14443 A/B compliant; supports Mifare, Mifare DESFire software based, Mifare Plus, and Felica

RFID capabilities

Reads, writes, and searches 13.56 MHz HF RFID tags

Read/write range

Up to 2 cm for NFC; up to 4 cm for ISO 14443 A/B

Dimensions

140 x 230 x 124 mm

Weight

1.5 kg

Power

External adapter 110 V to 220 V and 24 V

Operating temperature

+5 C to +40 C, 20% to 80% non-condensing; storage -20 C to +60 C

Reliability

Reader life 10 years; MTBF 44,000 hours

Agency approvals

CE, CB, cTUVus, FCC

Warranty

1 year standard; up to 5 years optional

Accessories

Seiko RPE-10 lightweight direct thermal receipt printer; optional external 8.4-inch second screen

• Airport boarding gates
• Passenger authentication points
• Airport security and access checkpoints
• Self-service airport kiosks
• Check-in and bag drop systems
• Common-use passenger processing environments
• Airline counters and service desks
• Biometric and credential verification workflows

What is the Easier i602 used for?

The Easier i602 is used to read and authenticate boarding passes and contactless media in airport passenger processing environments such as boarding gates, check-in counters, security checkpoints, and self-service kiosks.

Can the i602 read mobile boarding passes?

Yes. The i602 can read barcodes from mobile phones and other electronic displays as well as paper boarding passes and Print at Home documents.

What barcode formats does the i602 support?

The i602 supports all major 1D and 2D barcode formats, including PDF417, DataMatrix, Aztec, and QR Code.

Does the i602 support RFID and NFC?

Yes. The i602 supports HF RFID and NFC technologies, including NFCIP-1, ISO 18092, and ISO 14443 A/B. It can read, write, and search 13.56 MHz HF RFID tags.

How fast can the i602 read a boarding pass?

The i602 provides read capability in less than 0.5 seconds, helping support fast passenger validation and boarding workflows.

Is the i602 compatible with common airport platforms?

Yes. The i602 is CUPPS and CUSS compliant and is designed to work with existing airport passenger processing platforms.

What feedback does the i602 provide to agents and passengers?

The device includes a 3.5-inch color TFT-LCD display, wide green and red LED indicators, and an extra-loud buzzer for clear visual and audible validation feedback.

Can the i602 control or connect to external devices?

Yes. The i602 can support external devices such as receipt printers and biometric devices, and an optional external 8.4-inch second screen is available.

Why choose the i602 for airport boarding pass authentication?

The i602 combines fast omnidirectional barcode reading, RFID and NFC support, embedded Linux applications, common-use compatibility, and web-based management in a compact reader for airport passenger processing.
